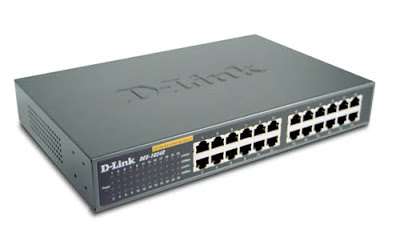

D-lInk Switch/Hub

Description

With Plug-&-Play functionality, the D-Link DES-1024D Unmanaged switch expands your network and automatically detects your network speeds and adjusts for peak performance.



   The 24-port D-Link DES-1024D unmanaged switch is the latest addition to D-Link’s popular line of Express EtherNetwork™ products. Like other products in the line, the DES-1024D combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.The DES-1024D is truly Plug-&-Play with features like: Auto Speed Sensing — allowing it to automatically sense whether a network device is running at 10Mbps or 100Mbps then automatically adjusting itself for optimal performance; Auto-Negotiation (Full or Half Duplex) — negotiating and running the highest supported transmission rate whether at Half- or Full-Duplex; and Auto MDI/MDIX Crossover—offering auto-negotiating MDI/MDIX detection on every port to eliminate the need for crossover cables or uplink ports.
The DES-1024D features a non-blocking wire-speed architecture with a 4.8Gbps switching capacity, for maximum data throughput. It also features an integrated universal power supply, and per port diagnostics LEDs that make it easy to “spot check” for problems. With wire-speed filtering and Store-and-Forward switching, the DES-1024D also maximizes network performance while minimizing the propagation of bad network packets.
This easy-to-use 10/100BASE-T swich will enhance and compliment any existing network infrastructure and deliver the performance that IT managers and other SMB network administrators demand.

Features

  • Superior Performance
  • Non-Blocking Wire-Speed Architecture
  • 4.8Gbps Switching Capacity

Specifications

  Ports      24-10/100Mbps RJ-45 Auto-sensing ports
  Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS Support (2 Queues)
  Network Interface
  • RJ-45: 100ohm, UTP/STP cable
  • 10/100Base – EIA/TIA Categories 3 or 5 cable
  Switching Method     Store – and – forward
  Switch Fabric      4.8Gbps
  MAC Address Table      8,000 entries
  Filtering/ Forwarding/LearningRates      Full line rate/full wire speed
  Physical Specifications
  • Dimensions (W x H x D):11.02 x 7.09 x 1.73 in.(280 x 180 x 44 mm)
  • Weight: 4.19 lbs. (1.9 kg.)
  • Metal Housing
  • Side Air Vents with Fanless Air-Cooling Design
  LEDs
  • 100Mbps – one per port
  • 10Mbps – one per port
  • Power
  • Link/Act (activity)
  Temperature
  • Operating: 32°-104°F (0-40°C)
  • Storage: 14°-158°F (-10°-70°C)
  Humidity, non-condensing
  • Operating: 5% to 90% RH
  • Storage: 5% to 90% RH
  Power Requirements      Universal AC input: 100 to 240 VAC, 50 to 60 Hz, Internal Universal Power Supply
  EMC/ Safety Compliances     Emissions
  • CE Mark Class A
  • FCC Class A
  • VCCI-A
     Safety
  • UL
  Warranty
  • Limited Lifetime
Ordering Information
 Part Number:      DES-1024D
 Description     Unmanaged Layer 2 Switch with (24) 10/100BASE-T Ports
